Why Use Hoses and Flexible Tubing?

Industrial hoses are a convenient and quick option for connecting two points in your fluid system. Hose and flexible tubing offer many benefits that can help eliminate downtime and reduce safety incidents in your fluid system operations. Consider some of these important features:

  • Fewer end connections equals fewer leak points
  • Easy to install
  • Pressure or vacuum tested
  • Backed by Swagelok Limited Lifetime Warranty

SHOP NOW

Photography-Field Engineer24

How to Select the Proper Hose



Understand Why Using the Correct Type of Hose is Important

Depending on the application, hoses can be exposed to various temperatures, pressures, flow requirements, and chemicals. If the hose is not compatible with these variables, a hose can fail, which may result in:

  • Production downtime and inefficiencies
  • Safety risks to personnel from the hose itself or exposure to system fluids
  • High repair costs and overall inflated operating costs
  • Poor product quality
  • Increased fugitive emissions

Know How to Match the Hose Type to Your Application

When specifying a hose, you should understand your application's need for pressure, temperature, and chemical compatibility. A hose has four major components you'll want to consider:

CoreHoseMaterial
  1. Reinforcement layer: Helps improve pressure containment and flexibility. Usually stainless steel or fiber woven braid improves pressure containment and flexibility. You should consider
  2. the hose bend radius, as well as “force to bend.”
  3. Cover: Provides protection as the hose's first line of defense. An outer layer (commonly silicone, polyurethane, or rubber) protects the underlying layers, as well as your personnel and surrounding equipment. The conditions of your plant can help you determine which cover material you need.
  4. End connections: The performance of your hose depends largely on proper end connection assembly. You can have a good hose and a good end connection, but if the assembly is not correct, you will have leaks. Our hoses are made by certified assemblers and every hose is tested before it leaves our facility.

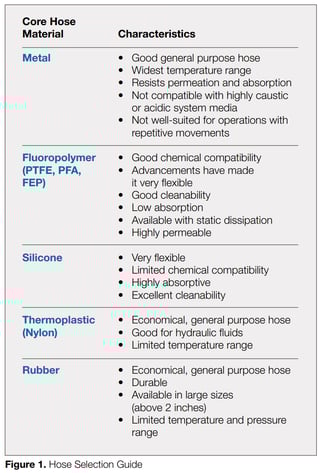

  5. Core hose material: As the innermost layer, the core material of your hose is the most important consideration. The material must be chemically compatible with the system media, tolerate temperature range, and provide acceptable levels of permeation, and absorption. (See Figure 1 for comparisons.)

Core Hose Material: Questions to Consider

As previously mentioned, the core hose material is the most important part of the hose. Below are some questions to help you better understand what your fluid system needs.

  • Is the core material chemically compatible with the system media? Will it corrode or deteriorate over time?
  • Can the core material tolerate the temperature range of the system media?
  • Will the core tube material prevent or limit permeation and absorption? (Depending on your application, permeation and/or absorption may not be an issue.)
  • Will the core material withstand your system’s cleaning practices? This includes temperature, pressure, and material compatibility with any solvents and cleaning agents.
Choose the Right Industrial Hose for Your Fluid System




How to Select Hose End Connections




Selecting Hose Components

Shop Swagelok Hoses and Flexible Tubing

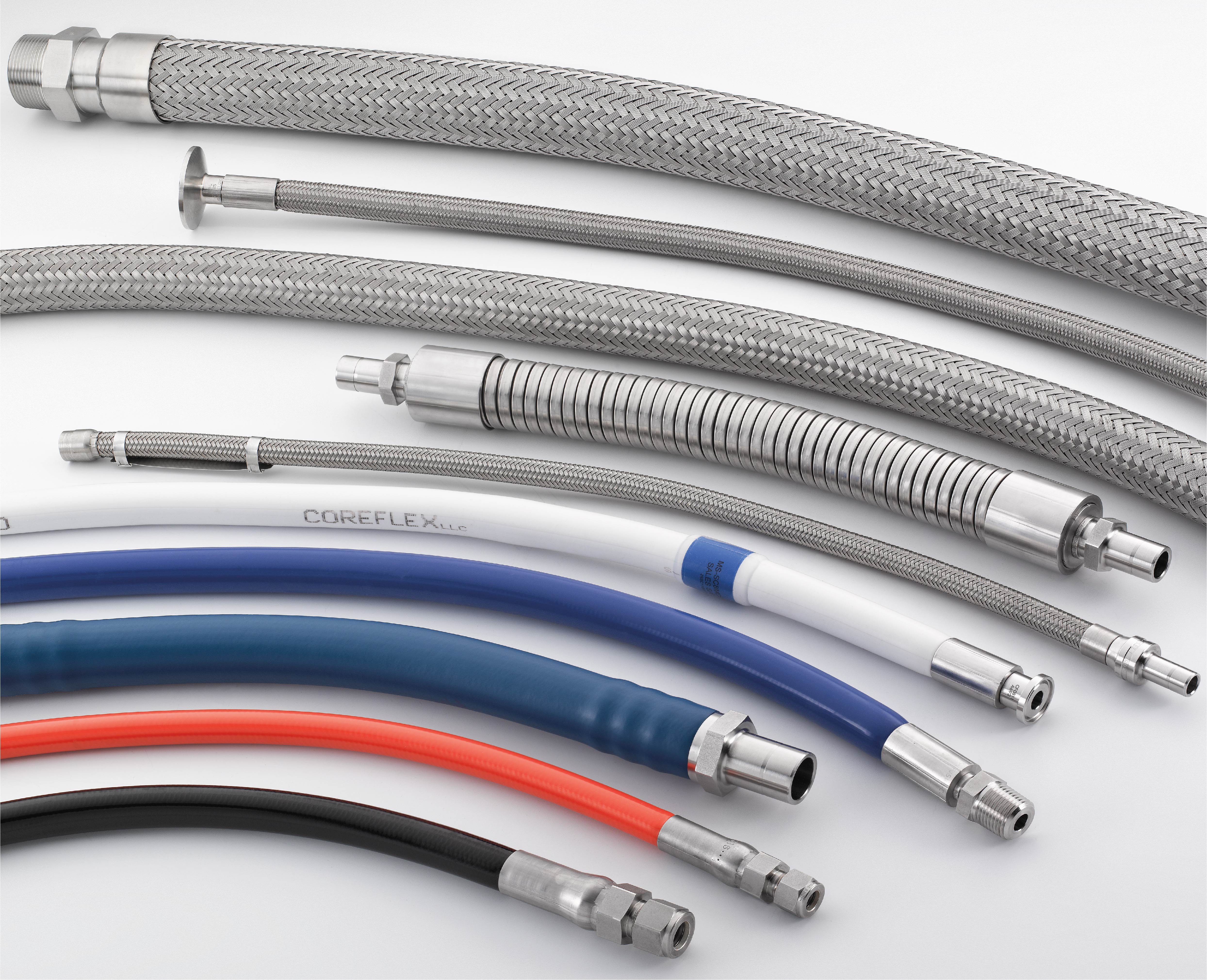

If you're in need of hoses now, we offer a broad range of hose and flexible tubing products for a variety of fluid handling systems. We can also build your hose assembly with exactly what you need:

  • Any length in sizes: 1/8 to 2 in.
  • Material: stainless steel, convoluted core, PFA core, PTFE core.
  • A wide choice of end connections: Pipe, tube, sanitary, flare, and pipe flange.
  • Hoses can include silicone covering, covers, and insulation.
  • Other options include: Nonconductive core, marks, or tags.
  • Need something specific? Just ask!



SHOP NOW

Trust Swagelok with Your Customized Hose Assembly

If you're short on time or resources, let Swagelok Minnesota | North Dakota | Appleton take on some of your hose assembly workload. We have an experienced team supporting our in-house hose assembly operations designed specifically to help customers. Our fine-tuned process means that you can trust us to provide hoses and tubing that are expertly crafted from quality materials, and our assemblies are tested to stringent standards. When our customers need their hoses quickly they turn to us because:

  • Our supply is in-stock and ready to ship
  • We're set up to build and ship custom deliveries fast
  • Same-day delivery when requested (based on availability)
  • On-hand stock in pre-cut lengths, sizes, and end connections available to fill your stocking needs
  • No minimum order quantity



REQUEST HOSE ASSEMBLY SERVICES

Insulated Hose Solutions Help Prevent Condensation

Hoses help powerful chillers regulate the environment necessary for production processes. Overlooking your hose selection can lead to unnecessary risks and costs in your operations. We offer insulation solutions for media temperatures as low as -65 degrees F. With our insulated hose options, you can solve many fabrication challenges such as:

  • Maintain optimal fluid temperature control: Increase efficiencies and minimize energy costs.
  • Combat condensation: Avoid damage, slip hazards, and downtime.
  • Minimize contaminants: Cut down on particle generation.
  • Customize to your requirements: Choose the layering thickness your system needs.
  • Save money: Improve your process without high costs.
  • Discover more benefits.

BROWSE INSULATION OPTIONS

How to Maximize the Life of Your Hose

Once you've invested in hoses for your fluid system, you'll want to know how to obtain the longest life possible from them without compromising safety. Some things to keep in mind to preserve the life of your hoses are to make sure you're: routing them properly within your fluid system, storing hose inventory correctly, and following a hose maintenance plan.

Proper Hose Routing

Understanding how to properly install your hoses can greatly improve the quality and efficiency of your hose solutions. Consider these important tips:

  • Hose length: Improper hose length can accelerate unnecessary deterioration. If the hose is too long, it can rub against itself or the machine. If the hose is too short and tightly stretched, you increase the risk for leaks at the end connection.
  • Installation: Do not allow a hose to hang vertically from a horizontal end connection. Install a 90-degree elbow fitting first as shown in this image:
    Illustration and Drawing-Hoses and Flexible Tubing-4_Cropped

Proper Hose Storage

Keeping hoses on hand at your facility is important for maintenance and quick replacement. Here are just a few points to remember when storing hoses:

  • Store in clean, dry conditions between 50 and 70 degrees F
  • Protect from UV light/sunlight
  • Cap the hose at both ends to prevent contamination
  • When hanging hose, avoid kinks by not exceeding the hose's bend radius
  • Store coils horizontally on a surface

Proper Hose Maintenance

Hoses should be checked and replaced regularly. Waiting for a problem or a dangerous leak can lead to serious safety issues and length downtime. To always stay ahead of hose issues, we can help you create a hose maintenance plan. A solid plan includes:

  • Tracking the life and performance of every hose
  • An inspection schedule
  • A replacement schedule
  • An inventory plan to stock key components
