For years Swagelok Minnesota | North Dakota | Appleton has been called upon when a valve or fitting is needed that can "take the pressure" of an extreme system. To support that need, we have built our company around our engineering. We have put the resources in place to answer the difficult questions and as a byproduct, we have an exceptional service to offer.

Swagelok Design and Assembly Services offers many engineering services designed to help our customers with their needs:

  • Tubing and Pipe Routing
  • System Design2D and 3D Drawings
  • Skid designs from P&ID
  • P&ID to 3D models
  • Flow Calculation Assistance
  • Design Review

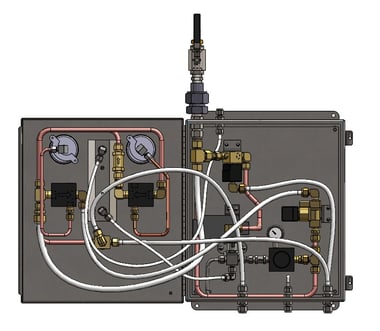

We offer all of these services when we build assemblies with Swagelok Design and Assembly, but they are also offered separately to meet customers' project needs. Swagelok's engineering services can help our customers design complex systems and assist with CAD modeling and layout; we also offer our expertise in demanding applications like oxygen, hazardous gas, chemical processing, and power.

SolidWorks® CAD drawings are available in .IGES, .STEP, .DWG, and .DXF formats.

You trust our components. Now trust our experts to create great fluid system assemblies.
